The Complete Guide to Debugging Your New RC Airplane: A Pre-Flight Checklist

While purchasing a new RC aircraft is thrilling, rushing to fly without appropriate debugging could result in expensive mistakes or poor performance. Safe, fun flights depend on you spending time carefully checking and setting up your plane, whether you have just bought your first model or added another aircraft to your collection. From simple assembly checks to final flight preparations, this manual will walk you through the necessary debugging steps.

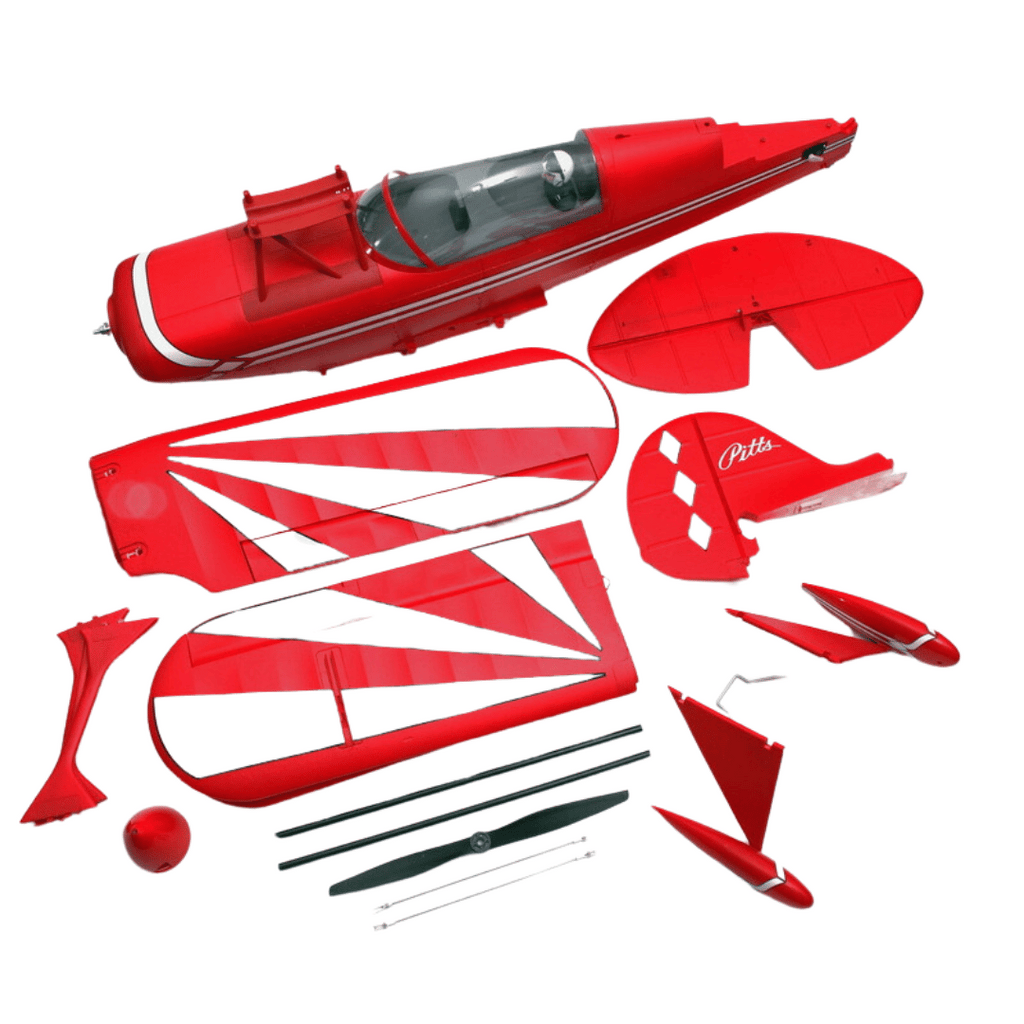

1. Inspect Visual and Check Assembly

Start by gently unpacking your new RC aircraft and cataloging every component. Look closely at the airframe for evidence of production defects or shipping damage, including dents, cracks, or other anomalies. To be sure they are correctly bonded or secured, check all joints and seams.

Make sure the tail surfaces and wings are straight and properly matched. Focus especially on the control surfaces and gradually adjust them to guarantee they move freely and without binding. To be sure all of the mounting screws and fasteners are tight and secure, lastly, carefully check each one. Then, before starting the debugging process, you can find and fix any possible issues to guarantee the safety and performance of your new RC aircraft.

2. Prepare the Electronics and Power System

Start the debugging process by charging a new battery using the correct charging techniques described by the manufacturer. Following the directions in the instruction handbook, then, bind your transmitter to the receiver. Verify that the signal reception is operating as intended by carefully connecting the servos to the proper receiver channels.

Test the motor direction to guarantee it is spinning the right way after removing the propeller. Calibrate the electronic speed controller (ESC) then to fit the throttle range of your transmitter. You can install the propeller with all the safety measures once the ESC is correctly configured.

Finally, double-check that every connection is tight and secure by arranging all the wires away from any moving components.

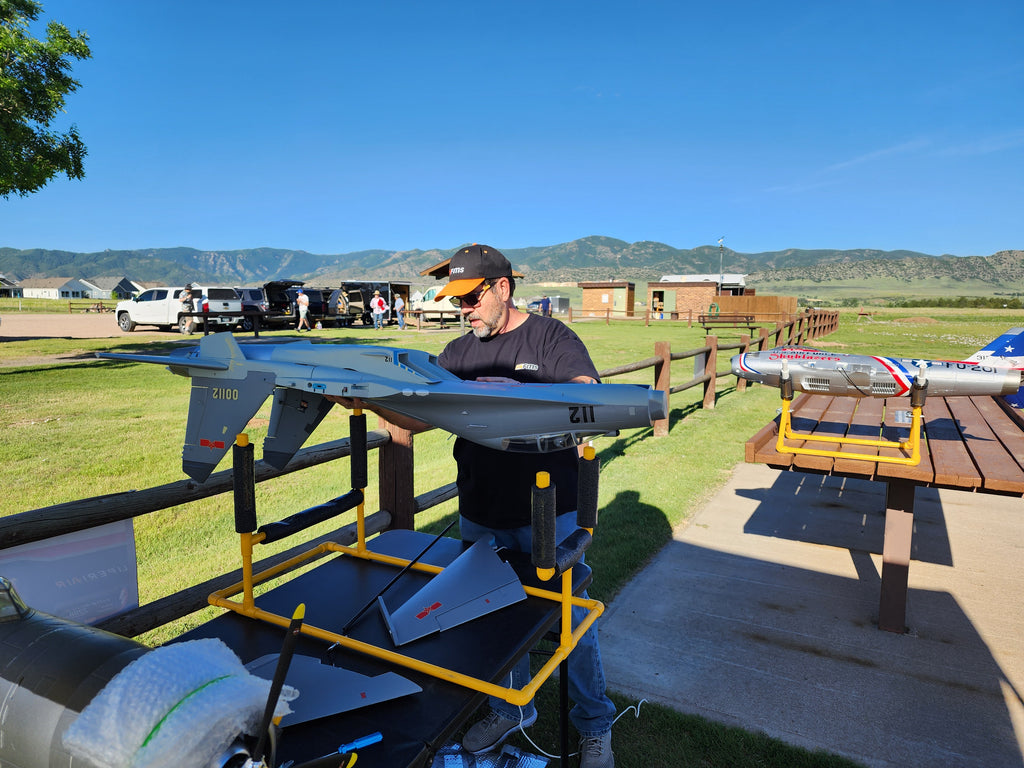

3. Configure and Test the Control Surfaces

Begin by setting all the trims on your transmitter to the neutral position.

Next, configure the control surfaces to the manufacturer-recommended positions. This ensures the airplane is properly balanced and ready for flight. Test each control surface, such as the ailerons, elevator, and rudder, to verify they are moving in the correct direction and to the proper extent.

Set up dual rates on your transmitter, providing both high and lowsensitivity options for the control surfaces. This will give you more flexibility in how you fly the airplane. Additionally, adjust the exponential settings to achieve a smoother, more responsive control feel.

Finally, confirm that all the control surfaces return to their neutral center position when the controls are released. Only after verifying the basic setup is correct should you make any small trim adjustments to fine-tune the aircraft's handling.

4. Optimize the Weight and Balance

Locate the recommended Center of Gravity (CG) point as described in the manufacturer's instructions. Support the aircraft at the designated CG locations to ensure overall balance. If the balance is incorrect, carefully position the batteries to attain the proper CG without adding extra weight to the airframe.

In some circumstances, you may need to add more weight to the plane to attain the proper balance. If so, ensure that the weight is distributed symmetrically and adequately secured to minimize uneven loading.

Test the balance in both normal and inverted positions, if applicable, to ensure that the aircraft is stable in all orientations. Remember that keeping the correct CG is essential for producing stable and predictable flight characteristics.

5. Conduct Ground Testing with Safety in Mind

A thorough ground testing process guarantees the safety and suitability of your new RC airplane before it is flown. Start by locating a free from people and obstacle-free open space fit for these tests.

Start by conducting a full-range check of your radio system, verifying that the transmitter and receiver are communicating properly over the entire intended distance. Next, motor run-up tests are performed, gradually increasing the throttle from low to high power while watching for any unusual vibrations or concerning sounds.

With the motor running, test all the control surfaces to confirm they are functioning correctly and responding appropriately to your transmitter inputs. Vary the motor speed during these tests to ensure the aircraft's structural integrity is maintained under different power conditions.

Look closely over the aircraft for any connections or loose components that might have moved during testing. Any problems found have to be addressed before trying to fly the aircraft.

At last, always orient the aircraft away from humans during these power tests, giving ground testing phase safety top priority.

Troubleshooting Common RC Airplane Issues

As you progress through the debugging process for your new RC airplane, you may encounter a variety of common problems.

• Servo Centering Issues: If you notice that your control surfaces are not centered properly, try adjusting the sub-trim settings on your transmitter to correct the alignment.
• Radio Interference: Should you experience any radio interference, try changing the position of the receiver or adjusting the orientation of the antenna to improve the signal quality.
• Control Surface Binding: Examine the linkages and hinges if you find limited or binding movement in the control surfaces; make any required changes to bring the surfaces back to smooth operation.
• Motor Cutting Out: Examine the electronic speed controller (ESC) settings and confirm that all electrical connections are securely and functionally sound.
• Vibration Problems: Handle vibration problems by ensuring the propeller is properly balanced and the motor mounting is secure and free of any issues.
