How to Set Up RC Car Controller

Getting the most out of your remote-controlled car depends on proper setup of your RC car controller, guaranteeing responsive and smooth handling. Whether your level of familiarity with RC cars is new or seasoned, knowing how to prepare and modify your controller will greatly improve your driving experience. This guide will bring you through the key actions to power up your controller, grasp its functions, and adjust the settings for the best performance.

1. Get Started with Your RC Car Controller

Powering Up

Before you can hit the ground running with your remote-controlled car, you need to ensure both the RC car controller and the vehicle itself are properly powered up. Start by inserting fresh or fully charged batteries into the controller—typically AA batteries—and check for any signs of corrosion or loose connections in the battery compartment. Similarly, ensure that the RC car’s rechargeable battery pack is fully charged and securely installed. Turn on the controller first once you have verified that all batteries are in their proper position; this usually entails pressing a power button or flipping a switch until an LED indication turns on. Then, normally under the chassis or close to the battery region, turn on the RC car by activating its power switch.

Initial Functionality Check

Once both devices are powered, it's important to make sure the automobile and controller are efficiently communicating. Start by lightly rotating the controller's joystick or steering wheel to see if the car's wheels turn proportionately and smoothly. Every movement on the controller should produce a matching turn of the wheels of the car. Test the throttle by dragging the trigger or pushing the lever ahead to find if the car accelerates smoothly. To guarantee the car stops as intended, release the throttle. Should all go without a hitch, your setup is successful. If there are difficulties, though, go back over the power settings and connections to fix them before moving forward.

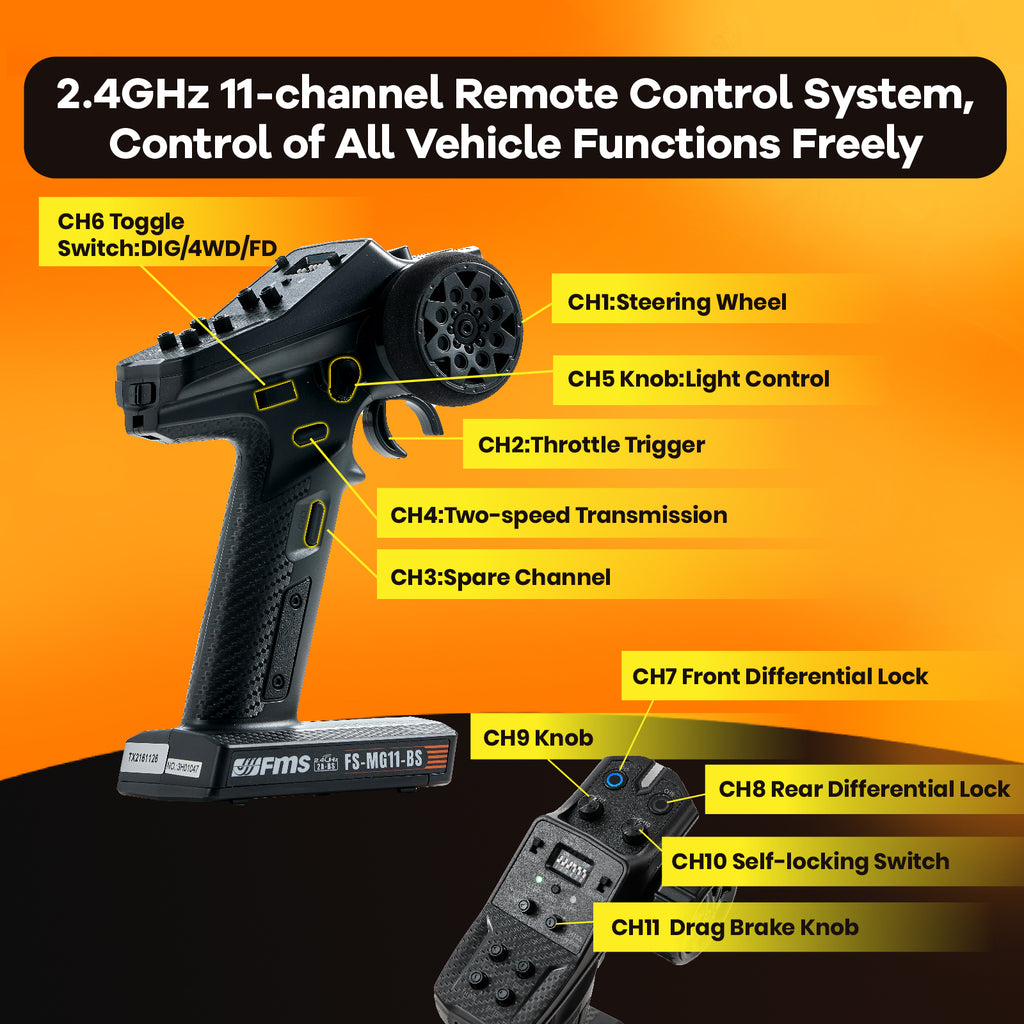

2. Understand RC Car Controller Features

Steering Control

The steering wheel or joystick on your RC car controller allows for precise, proportional control of the car's wheels. This means that a slight movement will result in a gentle turn, while a full rotation leads to a sharper turn. It’s essential to handle these controls gently to avoid damaging the sensitive steering components of both the controller and the vehicle. Gentle handling ensures smoother operation and longer-lasting equipment.

Throttle and Brake Control

Usually found beneath the steering system, a trigger or lever controls throttle and brake actions. Pulling the trigger back or pressing the lever forward speeds the car; the speed increases in direct line with your degree of control engagement. Release the trigger or gradually push the lever to slow down and engage the brakes. Reverse by pushing the trigger or lever further forward beyond the neutral point; this first engages the brakes, then moves to reverse. Initially, practicing fluid, slow motions helps you become used to the controller's responsiveness and helps avoid abrupt starts or stops that could damage the automobile or make control difficult.

3. Fine-Tuning Adjustments on Your RC Car Controller

Steering Trim

Adjusting the steering trim on your RC car controller is essential for achieving straight driving without veering off course. Most controllers feature a steering trim dial or button, typically labeled "ST." To make adjustments, drive the car forward and observe if it drifts to either side. If it does, use the trim control to adjust in the opposite direction of the drift until the car travels in a straight line. Adjustments may be necessary after impacts, part replacements, or when driving on new surfaces.

Throttle Trim

Your RC car controller's throttle trim guarantees the car stays still at neutral thrust, therefore preventing accidental movement. Most controllers have a "TH" dial or button for this adjustment. After the car is on a level surface, change the throttle trim such that the car stays motionless at rest. Finding the exact center point is vital; minor adjustments to the trim dial can help achieve this balance, particularly following battery changes or if the car moves suddenly when the throttle is neutral.

Advanced Settings on Your RC Car Controller

Steering Dual Rate

Steering dual rate allows you to adjust the maximum steering sensitivity and throw of your RC car. This feature is particularly useful for fine-tuning the responsiveness of the steering, enabling smoother control at high speeds by limiting the wheel's range of motion. To avoid binding issues—which occur when the wheels turn too sharply and strain the steering components—set the dual rate so that the steering throw is sufficient for maneuverability without overextending the servo's limits. Adjust this setting based on your driving conditions and preference for precision versus agility.

Channel Reversing Switches

Steering Channel Reverse

The direction the steering responds in changes depending on the reverse switch. This is especially helpful if the servo is set up such that the wheels rotate in the opposite direction from intended use. Turning this switch will help you fix the steering alignment so left turns the wheels left and right turns them right. This change should be used anytime the physical arrangement causes inappropriate directional reaction.

Throttle Channel Reverse

The throttle channel reverse switch similarly modulates the throttle control response. If the trigger movements result in incorrect acceleration or braking directions, reversing this channel will ensure pulling the trigger accelerates the car, and pushing it forward engages the brakes and reverse as intended. After any maintenance or modification, always verify these settings to guarantee correct control.

Final Checks and Troubleshooting for Your RC Car Controller

Perform some last checks and fix any possible problems that could develop during setup before taking your RC car.

Common Issues and Quick Fixes

1. Double-check the channel reversing switches if you find that steering or throttle controls are working in the opposite direction. Make sure they are configured in line with your planned control directives.
2. If your car does not react to inputs, make sure the controller and the car are powered on and correctly paired. To be sure every component has enough power, check battery levels and connections.
3. If the car wanders without control, review the steering and throttle trims. Change them to have the car remain motionless when not turning or accelerating.
4. In areas with multiple RC devices, interference may cause erratic behavior. Ensure your controller and vehicle are on the correct frequency or use a model with frequency-hopping technology.

Final Checks

Check all settings and changes done during setup twice before leaving. Verify batteries are fully charged, all screws and fasteners are tight, and the surroundings are safe for driving. Reviewing these features carefully will help you to appreciate a flawless and fun RC car experience.

Ready, Set, Drive!

You're ready to savor the exciting experience of remote-controlled driving when your RC car controller is set up and tuned. Understanding how to power up properly, handle steering and throttle controls, and make required modifications will help you equip yourself for better handling and performance. Frequent inspections and troubleshooting help you avoid typical problems, thereby guaranteeing the best performance every time you drive. Prepare now; then, take your RC car out for a ride and confidently enjoy it!
