Top Highlights
- Powerful twin 4258-KV460 motors with twin Predator 60A ESC. (with 10A UBEC)
- The most accurately scaled landing gear set we have ever created.
- Super high-scale detail throughout:
- Scaled CNC-processed metal landing gear set
- Pilot figure
- Panel lines and all-around rivets
- High-brightness LED set
- The latest locked-rotor mode E-retract with overcurrent protection.
- Metal digital servos for excellent controlling capacity.
- Multi-connector for one-step installation.
- Screw-together construction.
- A 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces.
- Large bearings in wheel hub for better performance.
- Button Type canopy hatch.
- Large battery compartment.
- Four set decals for DIY (blue color scheme only), to be different.
Description

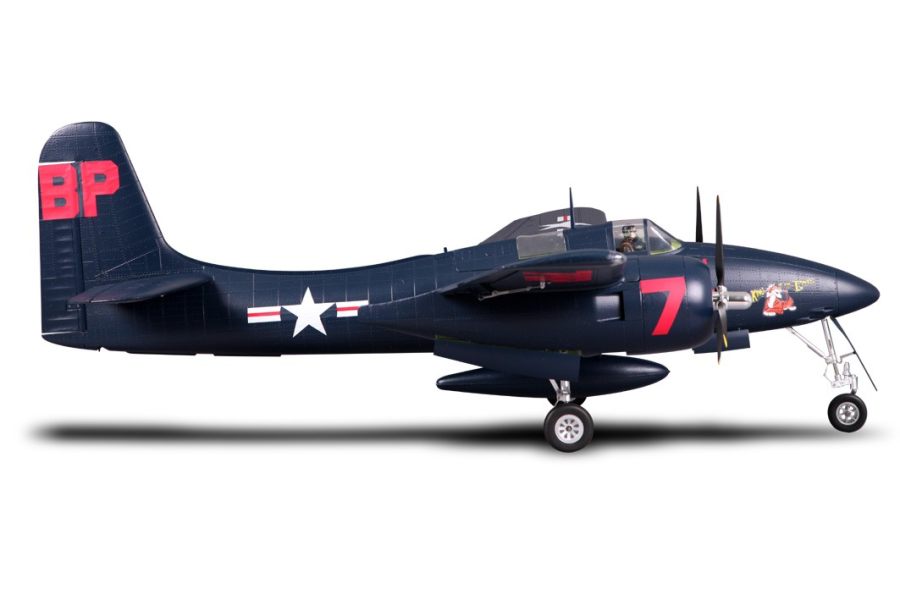

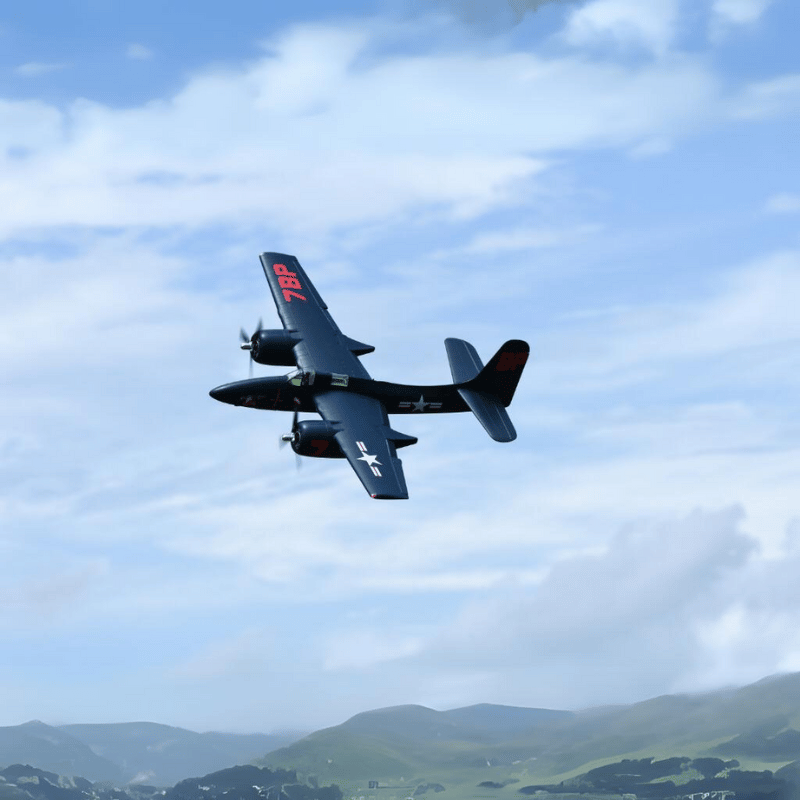

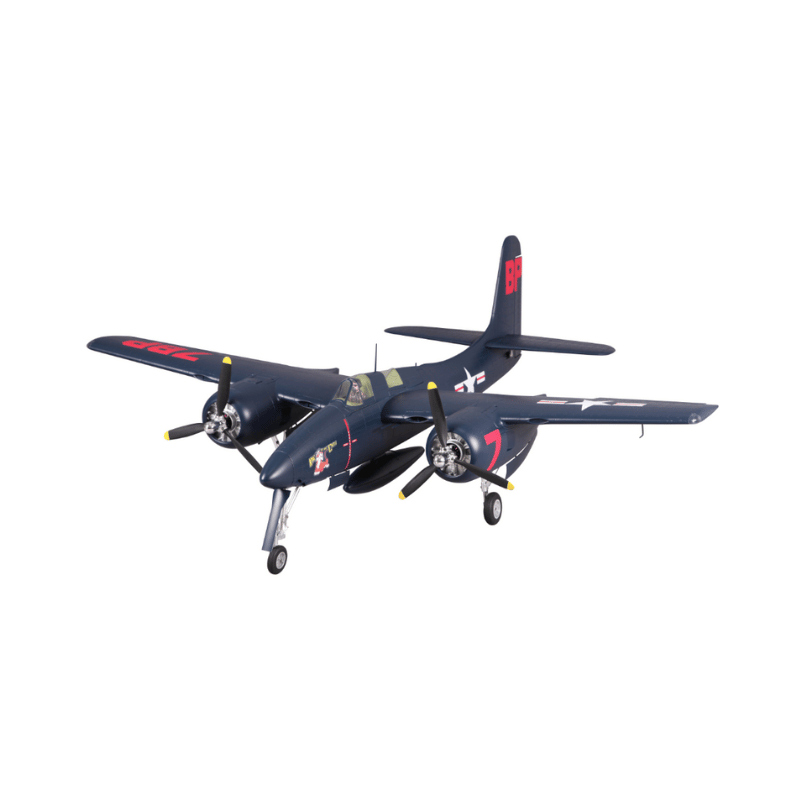

After almost two years development, numerous tests and improvements, we have reproduced the classical highly anticipated F7F! FMS 1700mm Tiger Cat is coming!
The FMS 1700mm Tiger Cat pools the best structural features from FMS’ classic works. It adopts the popular quick and easy assembly and disassembly structure. Screws can do all assembly and disassembly work. In addition, with the latest multi-connect technology, FMS has streamlined the wing system, eliminating the wiring problems, and making it easier to install and dismantle in a short time. The well-designed battery compartment makes full use of airframe space, allowing for higher-storage batteries and more flying choices.
FMS’ warbirds are always attractive, no matter from the perspective of scaled appearance, or from excellent performance. This also applies to the Tiger Cat.
The Tiger Cat features the latest locked-rotor mode E-retract system with overcurrent protection, the refined scaled CNC-processed metal landing gear set (Certainly the most notable feature is that this is the most accurately scaled landing gear set we have ever created) for resisting those not-too-perfect landings, a 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces. The power system utilizes twin 4258-KV460 outrunner motors, twin 60A ESC (with 10A UBEC), providing surging power for scaled aerial combat maneuvers when coupled with a 6S 5000mAh 45C battery.
The Tiger Cat has the most scaled appearance, with scaled plastic parts throughout the body, e.g. landing gear door, cowl, artificial engine, and machine guns... Couple that with the detailed all-around rivets, panel lines, pilot figure, high bright LED lamps, a CNC-processed shock-absorbed metal landing gear set, the Tiger Cat is reproduced flawlessly. Moreover, 4 set decals in the package (blue color scheme only) allow you to make your own Tiger Cat and stand out in your airfield
It is more than an RC model. It is one for the collectors. Go get the FMS 1700MM “Tiger Cat” to experience its magnificence.

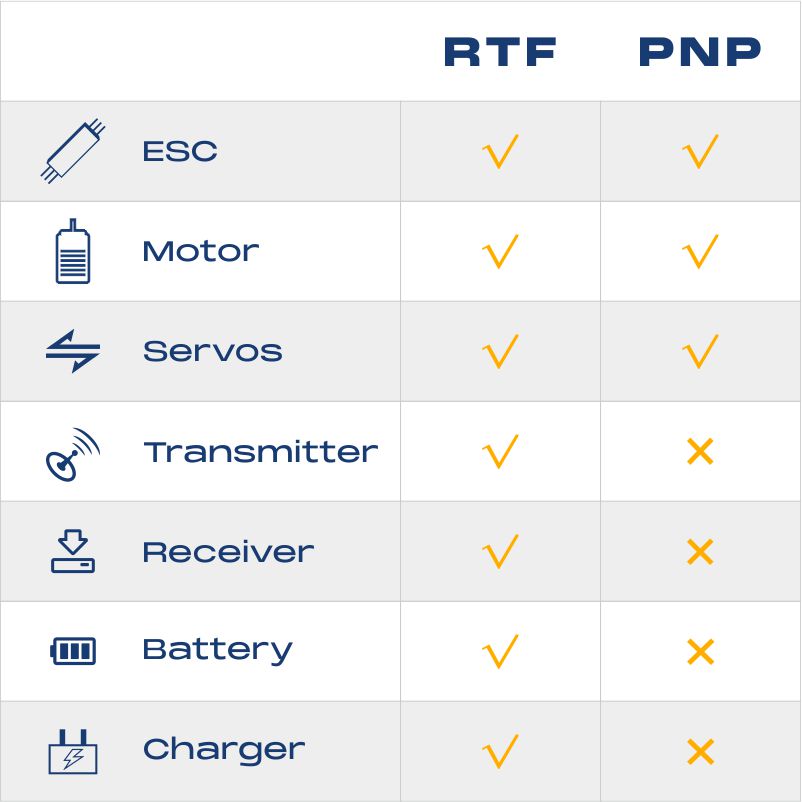

Notes to buyers:
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
Specification
|
|
Wingspan | 1700mm/ 66.9in |
Overall Length | 1,484mm/ 58.4in |
Flying Weight | 5200g |
Motor Size | Brushless Motor 4258-KV460 x 2 |
ESC | 60A x 2 With 10A UBEC |
Servo | 7 x 13g metal analog, 5 x 17g metal digital |
Radio | 6 Channel |
CG (center of gravity) | 70-80mm (From leading edge) |
Prop Size | 14*8, 3 blades propeller |
Recommended Battery | Li-Po 22.2V 5000mAh 45C |
Battery Connector | EC5 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | Yes |
Approx. Flying Duration | 5 minutes |
Minimum Age Recommendation | 14+ |
Experience Level | Intermediate |
Assembly Time | 30-60 minutes |
Wing Area | 49.1dm² / 761sq.in |
Videos
More Videos Please Go To Our Youtube Channel: FMS Model



Parts
FMS Reflex V3 Stable Flight Controller
RC-Aircraft Lipo Battery Voltage Checker

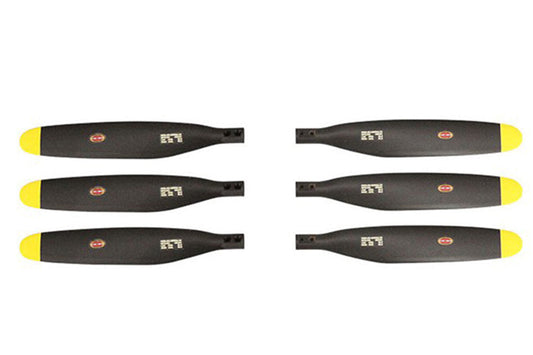

1700mm F7F Propeller 14*8
4258 Motor Shaft

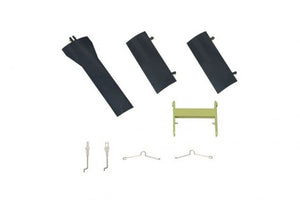

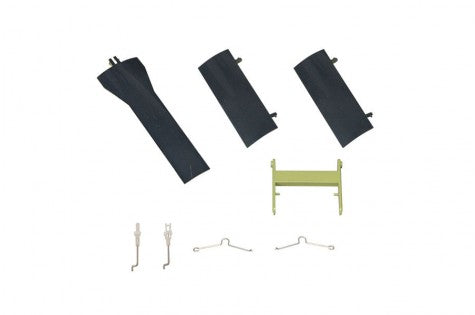

1700mm F7F Tigercat Front Landing Gear Cover

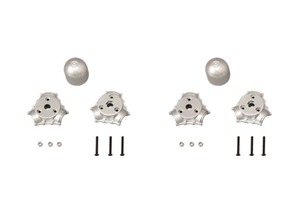

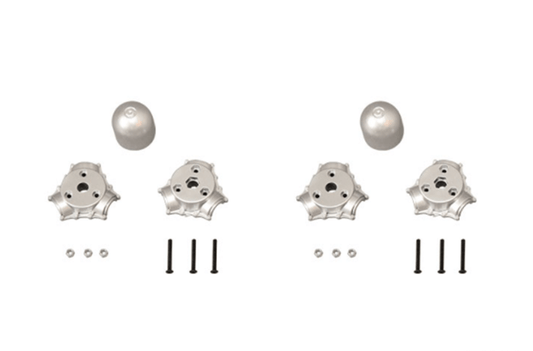

1700mm F7F Tigercat Spinner
Manual & Support
Description
After almost two years development, numerous tests and improvements, we have reproduced the classical highly anticipated F7F! FMS 1700mm Tiger Cat is coming!
The FMS 1700mm Tiger Cat pools the best structural features from FMS’ classic works. It adopts the popular quick and easy assembly and disassembly structure. Screws can do all assembly and disassembly work. In addition, with the latest multi-connect technology, FMS has streamlined the wing system, eliminating the wiring problems, and making it easier to install and dismantle in a short time. The well-designed battery compartment makes full use of airframe space, allowing for higher-storage batteries and more flying choices.
FMS’ warbirds are always attractive, no matter from the perspective of scaled appearance, or from excellent performance. This also applies to the Tiger Cat.
The Tiger Cat features the latest locked-rotor mode E-retract system with overcurrent protection, the refined scaled CNC-processed metal landing gear set (Certainly the most notable feature is that this is the most accurately scaled landing gear set we have ever created) for resisting those not-too-perfect landings, a 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces. The power system utilizes twin 4258-KV460 outrunner motors, twin 60A ESC (with 10A UBEC), providing surging power for scaled aerial combat maneuvers when coupled with a 6S 5000mAh 45C battery.
The Tiger Cat has the most scaled appearance, with scaled plastic parts throughout the body, e.g. landing gear door, cowl, artificial engine, and machine guns... Couple that with the detailed all-around rivets, panel lines, pilot figure, high bright LED lamps, a CNC-processed shock-absorbed metal landing gear set, the Tiger Cat is reproduced flawlessly. Moreover, 4 set decals in the package (blue color scheme only) allow you to make your own Tiger Cat and stand out in your airfield
It is more than an RC model. It is one for the collectors. Go get the FMS 1700MM “Tiger Cat” to experience its magnificence.
Notes to buyers:
RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
Specification
|
|
Wingspan | 1700mm/ 66.9in |
Overall Length | 1,484mm/ 58.4in |
Flying Weight | 5200g |
Motor Size | Brushless Motor 4258-KV460 x 2 |
ESC | 60A x 2 With 10A UBEC |
Servo | 7 x 13g metal analog, 5 x 17g metal digital |
Radio | 6 Channel |
CG (center of gravity) | 70-80mm (From leading edge) |
Prop Size | 14*8, 3 blades propeller |
Recommended Battery | Li-Po 22.2V 5000mAh 45C |
Battery Connector | EC5 |
Aileron | Yes |
Elevator | Yes |
Rudder | Yes |
Flaps | Yes |
Retracts | Yes |
Approx. Flying Duration | 5 minutes |
Minimum Age Recommendation | 14+ |
Experience Level | Intermediate |
Assembly Time | 30-60 minutes |
Wing Area | 49.1dm² / 761sq.in |
Videos
Parts
FMS Reflex V3 Stable Flight Controller
RC-Aircraft Lipo Battery Voltage Checker
1700mm F7F Propeller 14*8
4258 Motor Shaft
1700mm F7F Tigercat Front Landing Gear Cover
1700mm F7F Tigercat Spinner
Manual & Support
FMS 1700mm F7F Tigercat Blue PNP
FMS 1700mm F7F Tigercat Blue PNP
SKU: FMS098PBU
Displayed points are based on product value.
FMS VIP Adventure
The points displayed are based on the value of the product. Please refer to the account page to see the actual points after checkout.
Before checking out, please ensure you are logged into your account to avoid losing points.
Points are awarded and available for use once your order has been completely shipped.
To redeem points for coupons, please click on the top right corner of the page:
Sign in > Points & Coupons > Ways to Redeem.

Displayed points may not include bonus points for specific products. If a product has bonus points, the extra points will be shown in your account’s Transaction History. You can check your bonus points in your account by signing in and navigating to:
Sign in >Points & Coupons > Transaction History.
Rewards start at just 300 points. Log into your account now and join the FMS VIP Adventure points journey!
$30 Off on RC Plane! Limited Stock Available.
Couldn't load pickup availability
🚚Shipping Fee
• Free Shipping on orders over $99
• $15 Shipping Fee on orders under $99
⏰Shipping Time
• RC Airplanes: 3-7 working days from the US warehouse
• RC Cars: 3-7 working days from the US warehouse; 10-15 days from the Chinese warehouse
• Parts & Accessories: 3-7 working days from the US warehouse; 10-15 days from the Chinese warehouse
👉🏻 Learn more about the Shipping Policy
We offer a 30-day return policy for new and unused products purchased directly from www.fmshobby.com, which can be returned for a refund or credit. This policy covers items that are defective or DOA (Dead On Arrival), as well as those that have shipping damage, loss, or missing parts.
👉🏻 Learn more about the Return Policy
Electronic accessories have a 90-day warranty from the date of delivery. At the same time, the customer is entitled to long-term official technician support.
👉🏻 Learn more about Warranty Policy
I have this bird for 4 years and over 60 flights. I had one crash, and it was not that hard to reattach the nose. I've had 50 flights on it since, without an issue.
The weakest part of the airplane are the landing gear doors. The hinges are easily broken and if you fly off of grass the gear will need a lot of maintenance.
It fly's like a warbird so it's stable but not very exciting to actually fly. Great stage presence, the guys like to see it up in the air!
I would consider upgrading the motors and ESC's for a little more power, as after so many flights, even using 7000mh batteries it seems to be slowing down in the sky.
A nice airplane to practice landings on bigger heavier planes with, in preparation for flyinglarger birds.
This is my 4th Tigercat, I sold 2 and lost my first to a SPEKTRUM crappy radio (I fly JETI now). But this bird will go nowhere, she’s only flying for me and these Tigercat are the absolute best foam warbird ever made. Get one before they stop making them, I’ll have at least 2 more and maybe more. AAA+++
Thanks FMS, she’s a WINNER!!!
Lot's to love about the Tigercat. Looks amazing, flies beautifully and generally very will built. However, the factory wiring is poorly implemented. The esc power and throttle leads are absurdly short coming out of the wing, I had to buy extensions. Fitting the engine pods to the wing was difficult due to too little room to pack the wiring in place. The screws should all be higher quality and larger. I wish they made the plane in a 1500mm version, I suspect the narrow fuselage required a larger plane to accommodate the 6S battery etc.
Being a balsa warbird fan I was a little hesitant about purchasing a larger foam RTF plane and actually felt a bit guilty as I enjoy building or modifying ARFs to suit my needs and hardware. Also, a 12+ Lb. foam plane kind of raised a red flag. The assembly was pretty straight forward and was built and CGd per the manual. Loved how scale the landing gear, prop hubs and dummy radials were! Really a step above anything I've seen before. The cockpit/pilot left a bit to be desired and I wish the tires were made of a softer material. She's also quite susceptible to hanger rash if manhandled. Any reservations I had about flying this bird were immediately gone on the maiden flight. A few clicks of elevator and ailerons and all was steady as can be. She's not fast but flies scale, my kind of flying, will do all of the basic warbird maneuvers with great presence and authority. 4+ min. flights with a 5000 45c battery are the norm with plenty of battery left for a go-around or two, 6 flights so far. A very forgiving airplane to land and I have yet to need a go-around. Very few nits and a lot of good things to say about this plane. 5 stars all the way! A great addition to my fleet.
Twins are not difficult to fly, which is the opposite of what I was lead to believe by the old guys at the field. This model makes learning a twin motor plane a cinch to fly. FMS has already paired the motors with very capable ESc’s that have the precision to keep this incredible beast in the air. This planes large size helps it be more stable when flying, but turn up the rates and enjoy a wild ride! Highly recommend.
