Top Highlights
- The unique layout of a delta wing with canards provides the aircraft with excellent climb rates and climbing altitudes, allowing for easy execution of low-speed high-angle maneuvers. Additionally, the delta wing, canards, and vertical tail are all reinforced with embedded strengthening ribs, effectively increasing the structural integrity of the aircraft and facilitating high-speed flight.
- Equipped with a 64mm 11-blade ducted fan with a 2840 KV3150 brushless motor and a high-performance 40A ESC, it is paired with commonly available 4S 2200mAh-2600mAh 25c batteries, effortlessly reproducing the thrilling sound of a fighter jet.

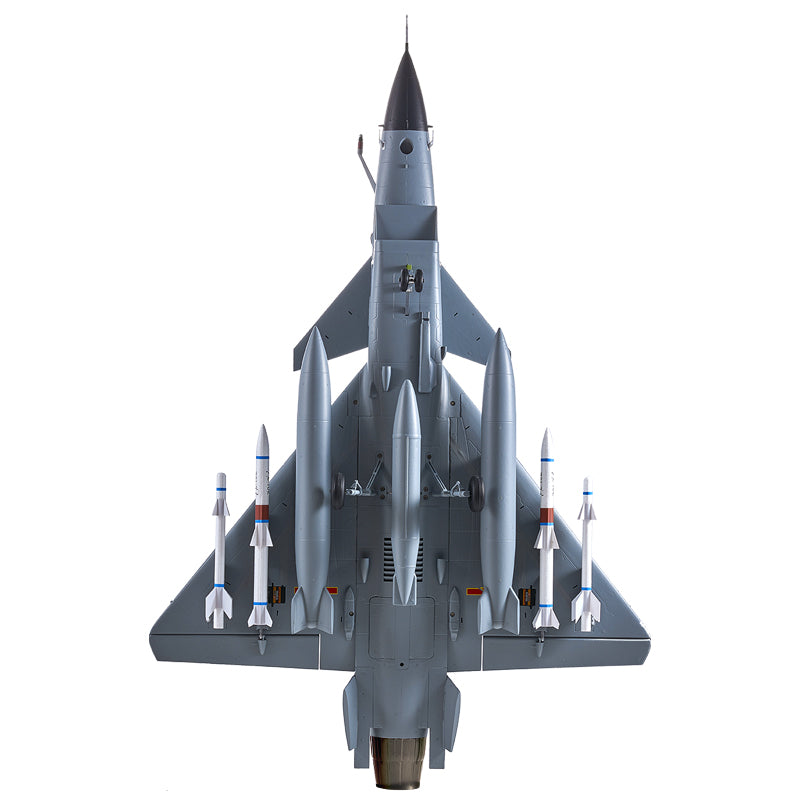

- High-fidelity details include but are not limited to non-functional scale detachable weapon sets (for air force gray livery only), air refueling probe, cockpit interior, pilot figure, and five high-intensity navigation lights.
- CNC-machined metal front landing gear with built-in CNC metal shock absorption, externally using realistic plastic parts.
- EPO 40 foam material with high-impact absorption and rigidity.
- Simulation water-based paint finish, with a full and tough paint film that is water-resistant, heat-resistant, and has a pleasing gloss finish.
- Features a simple-assembly structure, experienced players can complete all assembly and pre-flight testing in just thirty minutes.

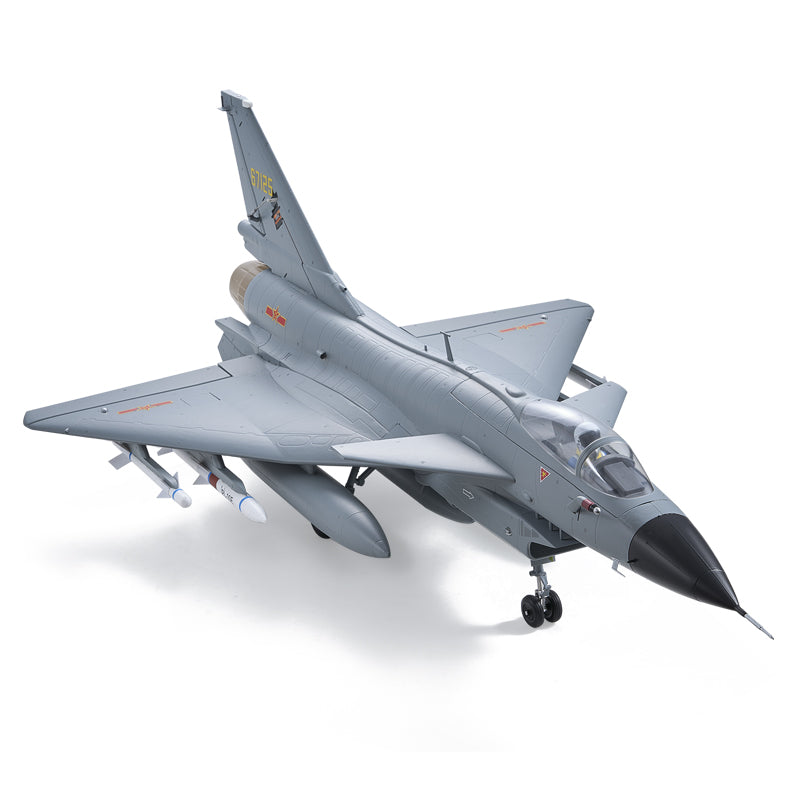

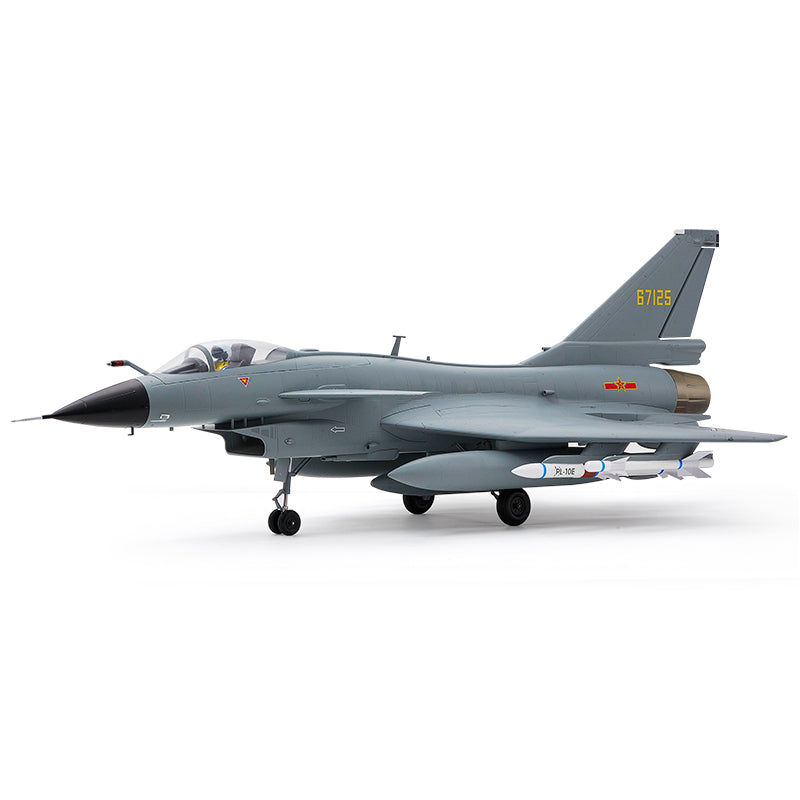

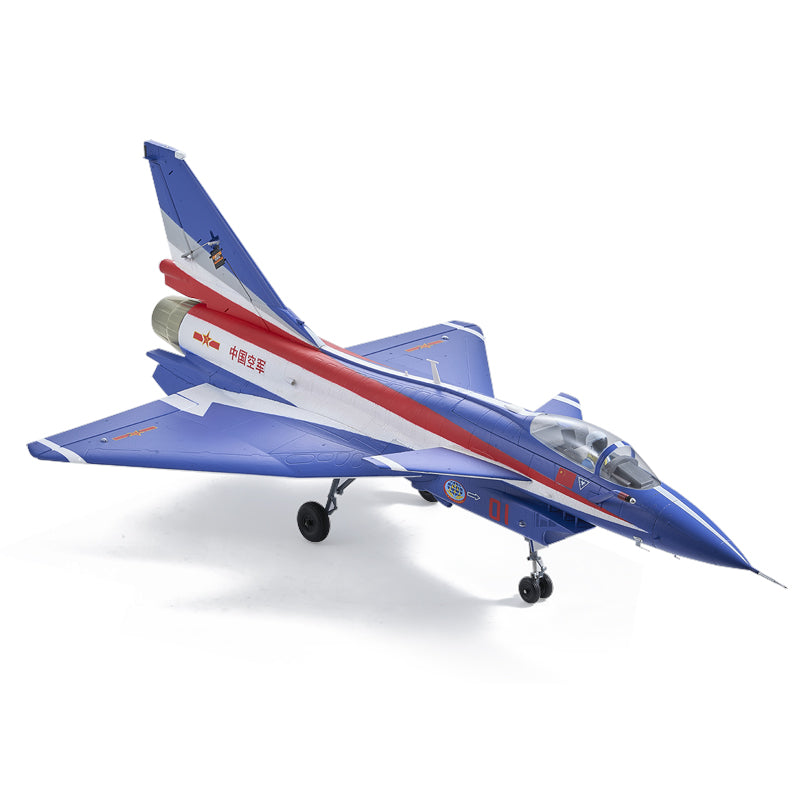

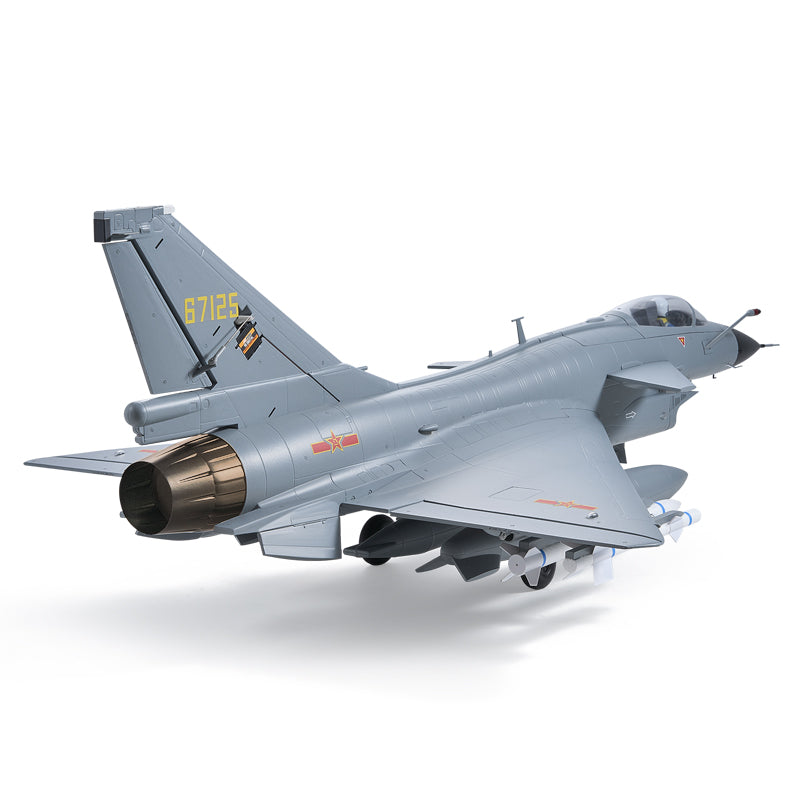

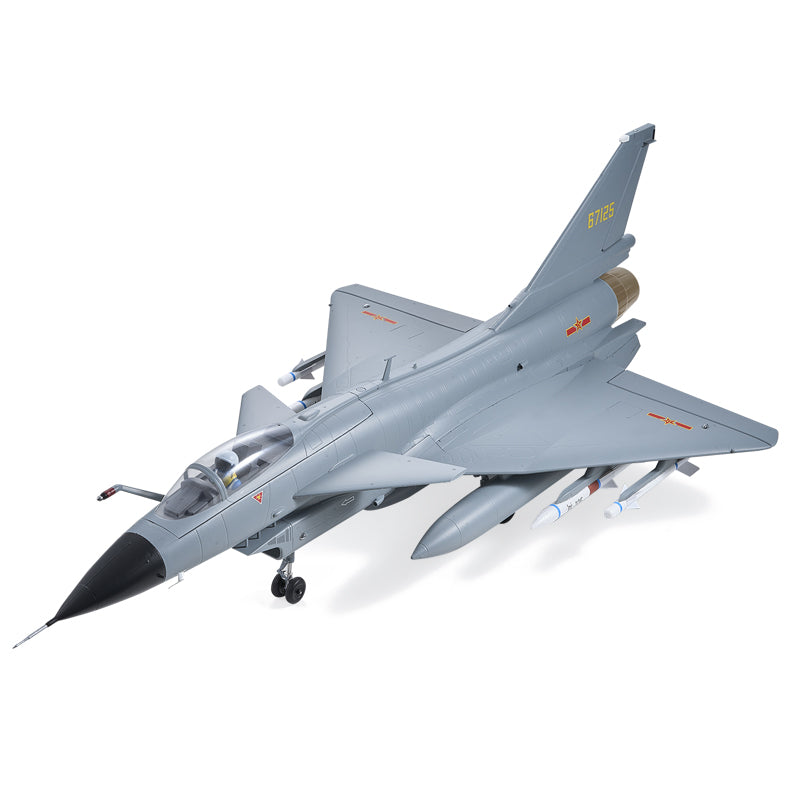

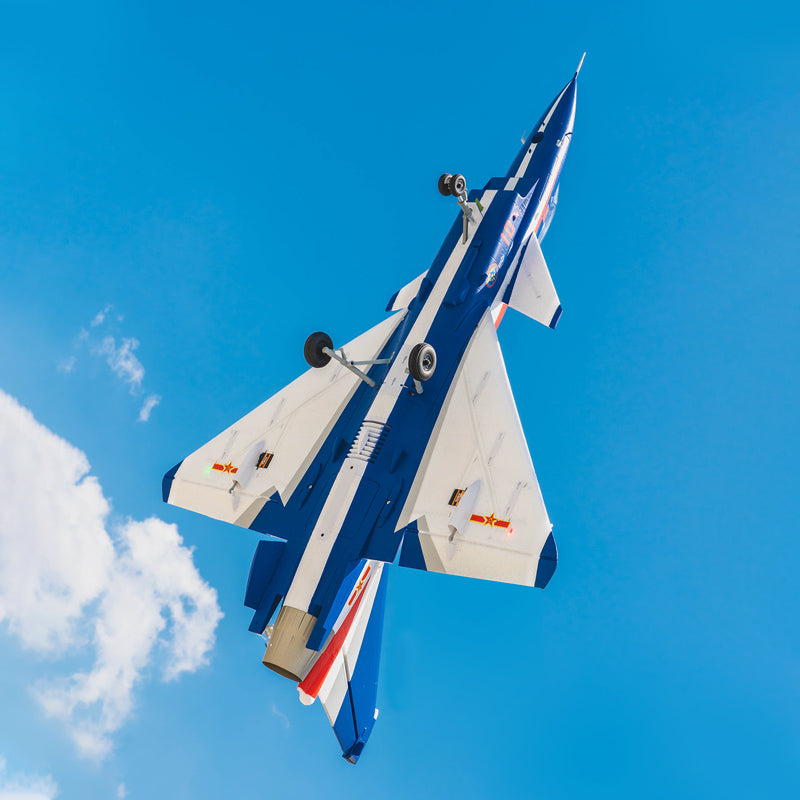

- Optional paint schemes include the “August 1st” Aerobatic Team paint and the Air Force gray paint.
Description
Background
The J-10 fighter jet, nicknamed "Vigorous Dragon”, is a domestically developed high-performance, multi-role, all-weather third-generation fighter aircraft. It boasts high reliability, survivability, and maneuverability, with a large combat radius, short takeoff and landing distances, strong attack capabilities, and overall combat effectiveness reaching advanced international levels among similar fighter jets.
Introduction
The J-10 EDF Jet features a unique delta wing and canard design for exceptional high-speed handling and also agile low-speed maneuverability. Using common 4S batteries, it is powered by a 64mm ducted fan with a brushless motor and a 40A ESC which helps to replicate the sound of a fighter jet. High-fidelity details include detachable weapon sets, an air refueling probe, navigation lights, and CNC-machined landing gear. Made from EPO 40 foam, it offers impact resistance and a water-resistant paint finish. The J-10 EDF jet is easy to assemble. Experienced modelers can complete assembly in about thirty minutes. Optional paint schemes are also available.
In The Box

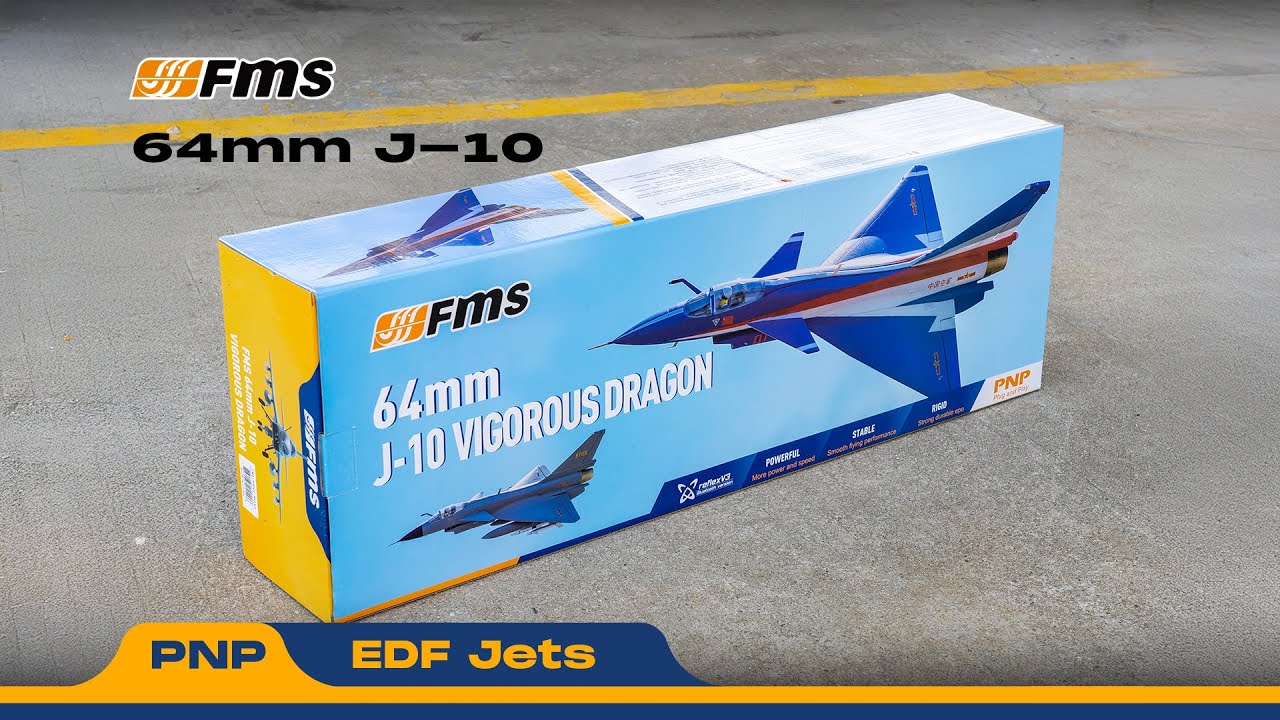

(1) 64mm J-10 EDF PNP
(2) 40A ESC with Reverse Thrust Function (installed)
(3) 2840 KV3150 brushless motor (installed)
(4) 64mm 11-blade ducted fan (installed)
(5) 4x 9g Digital Servo (installed)
(6) Product Manual
Needed to Complete
(1) 6 Channel Transmitter and Receiver
(2) 14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector
(3) LiPo Battery Charger
Notes to Buyers

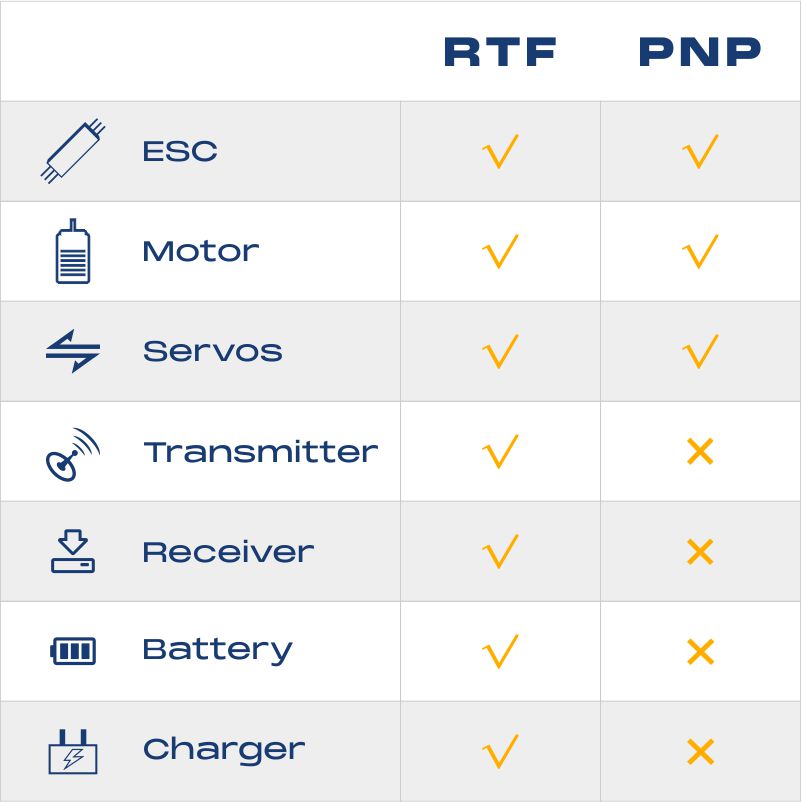

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.
④ The vertical tail and canard need to be secured with EPO glue.
⑤ A T6 Torx screwdriver is needed to install the front landing gear.
Specification
Model | Air Force Gray | "August 1st" Aerobatic Team |
Flying Weight | Around 1100g | Around 1000g |
Wing Load | 59.5g/dm² ( 0.12oz/in²) | 54g/dm² ( 0.11oz/in²) |
Wing Area | 18.5dm² (286.5 sq.in) | |
Wingspan | 690mm /27.2 in | |
Overall Length | 1110mm /43.7 in | |
Motor Size | 2840KV3150 | |
ESC | 40A | |
Servo | 9gX4pcs | |
Radio | 6CH Channel | |
CG (center of gravity) | 80-90mm | |
Prop Size | 64mm 12blades | |
Recommended Battery | 14.8V2200mAh-2600mAh 25c with XT60 connector | |
Aileron | Yes | |
Rudder | Yes | |
Flaps | No | |
Retracts | No | |
Approx. Flying Duration | 3 minutes | |
Minimum Age Recommendation | 14+ | |
Experience Level | Intermediate level | |
Assembly Time | 10minutes |
Features
High-Power EDF
Powered by a 64mm 11-blade ducted fan, a 2840 KV3150 brushless motor, and a high-performance 40A ESC, the 64mm J-10 requires a 4S 2200mAh-2600mAh 25C batteries for a realistic EDF fighter jet experience.
Stable Flight Technology
Reflex V3 stable flight technology aids pilots during takeoff and landing, stabilizes aircraft in normal and emergency situations, and helps reduce crash risks. Connect the Reflex V3 to your mobile phone via Bluetooth with the FMS app for customizable settings for FMS and other model aircraft.
Scale Detail Replication
Meticulously detailed with a non-functional scale detachable weapon sets (for air force gray livery only), an air refueling probe, a cockpit interior, and a pilot figure. These details provide increased realism.
Durable CNC Landing Gear
CNC-machined metal front landing gear that feature built-in shock absorption and realistic plastic parts for an authentic look and enhanced durability.
Reverse Thrust Capability
The ESC on the J-10 enables reverse taxiing and can also slow down The J-10 after landing. The ESC also includes protections against overheating, low voltage, and signal loss which enhances flight safety.
Bright Navigation Lights
Navigation lights have been added to the vertical tail, main wings, and belly air intake to enhance visibility during flight and replicate the design of real aircraft.
Iconic Paint Design

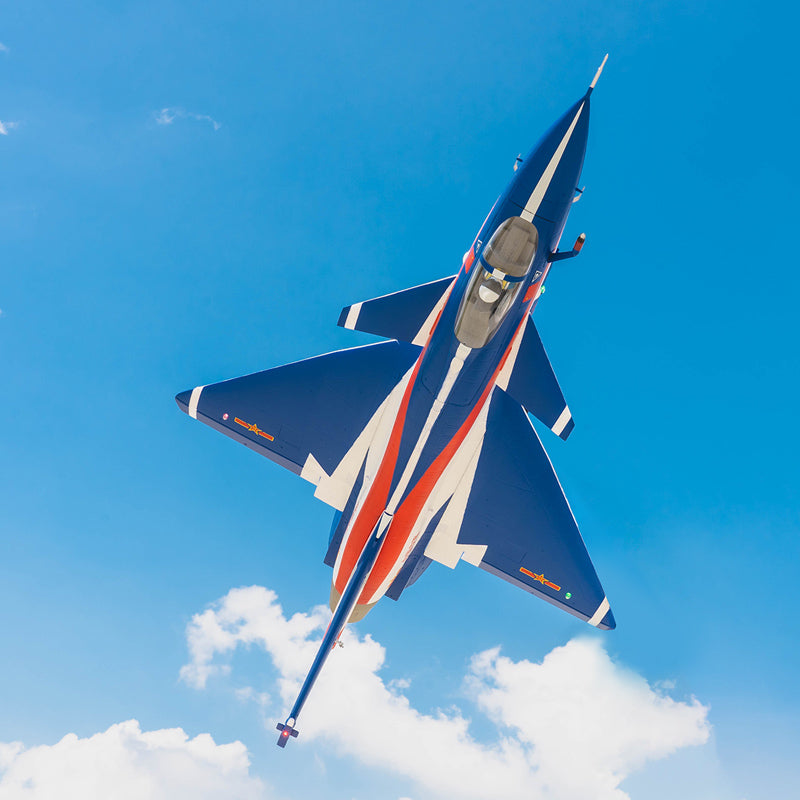

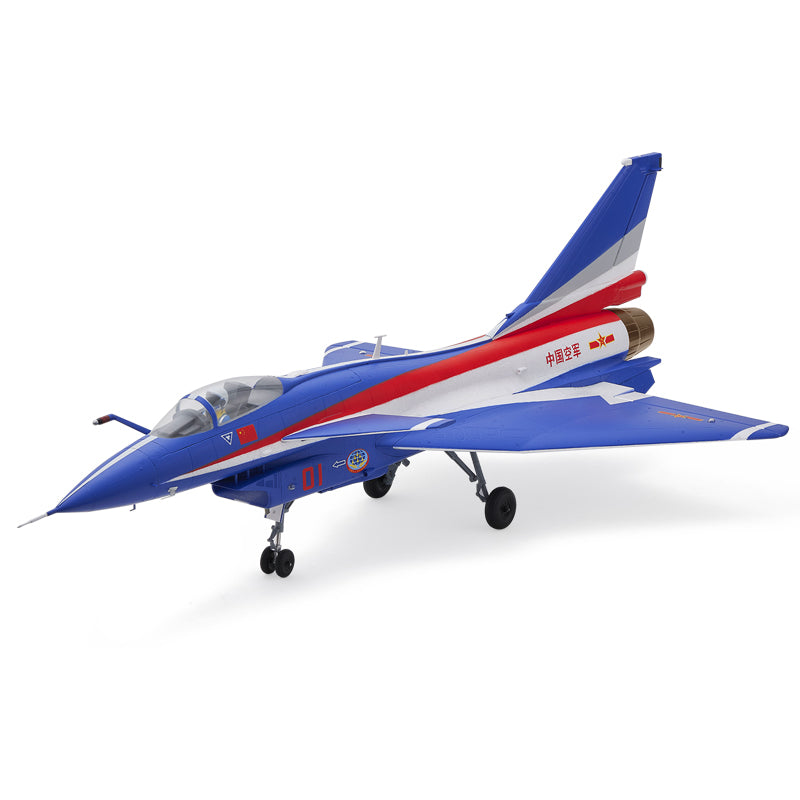

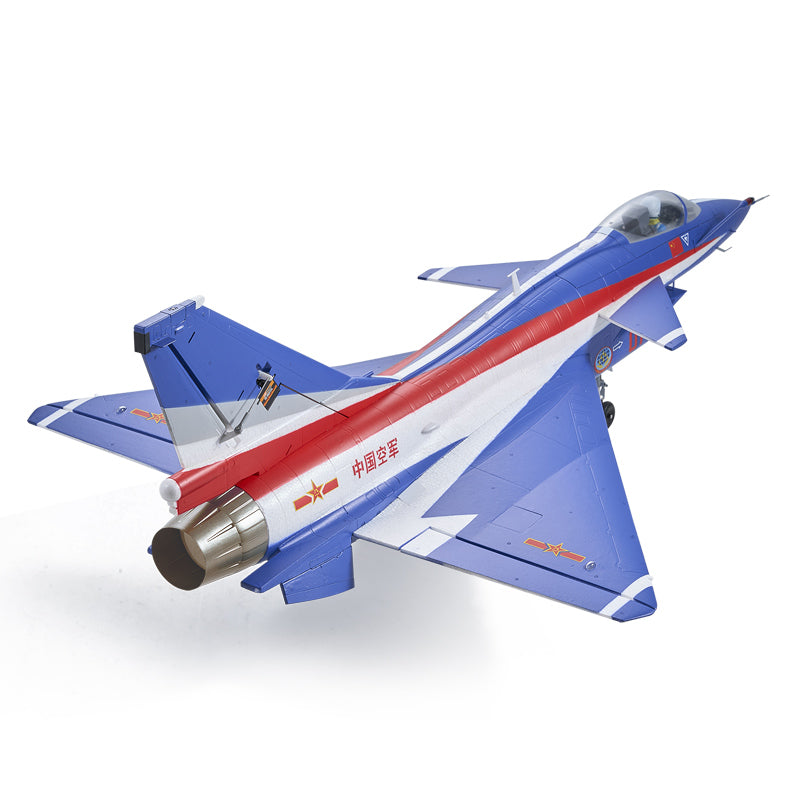

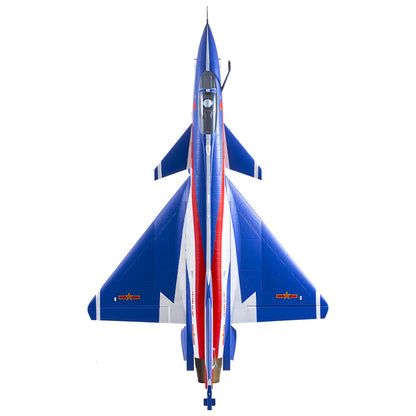

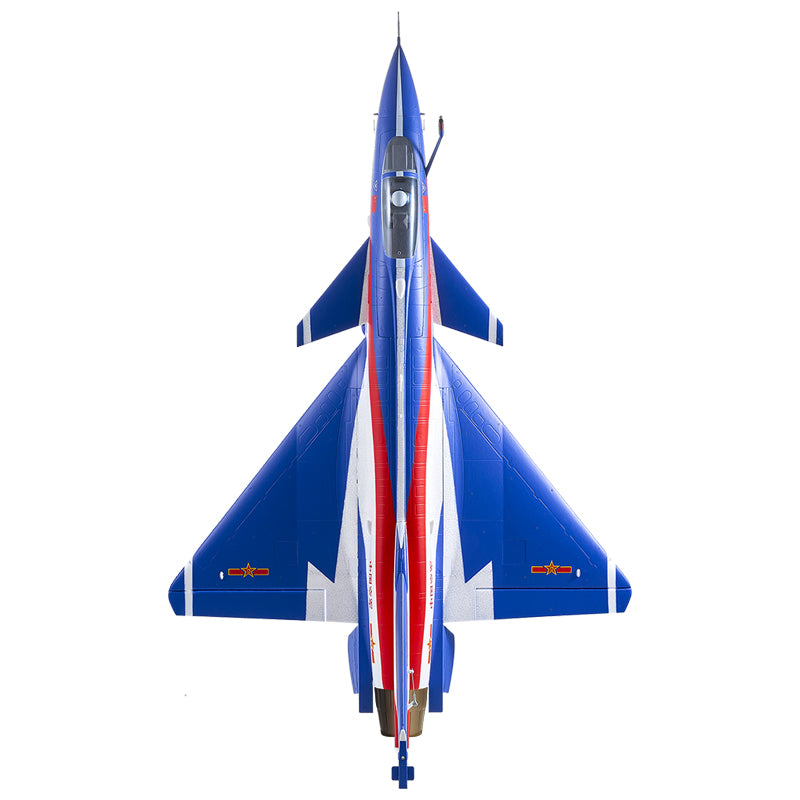

Choose from the iconic "August 1st" Aerobatic Team scheme or the classic Air Force gray scheme to suit your style.

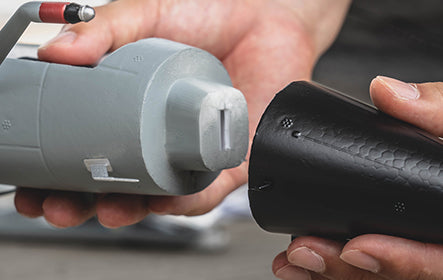

Detachable Nose Cone Design
The J-10 adopts a detachable nose cone design that is easy to install and remove.
Videos
More Videos Please Go To Our Youtube Channel: FMS Model
Parts
40A ESC- Special For 64mm F/A-18 Hornet, 64mm Rafale, 64mm J-10(With 260mm Input Cable, XT60)

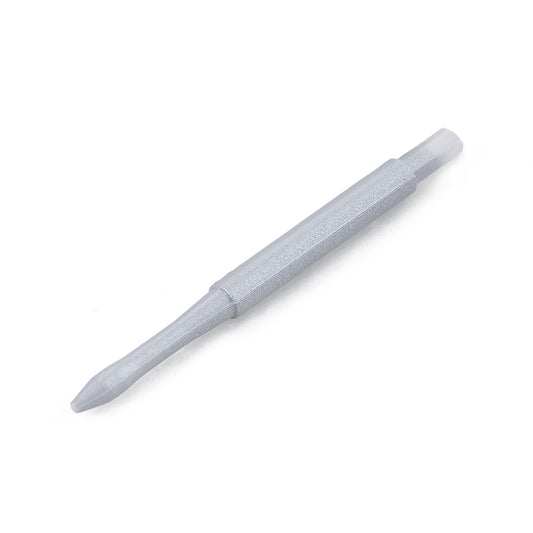

64mm J-10 Airspeed Head

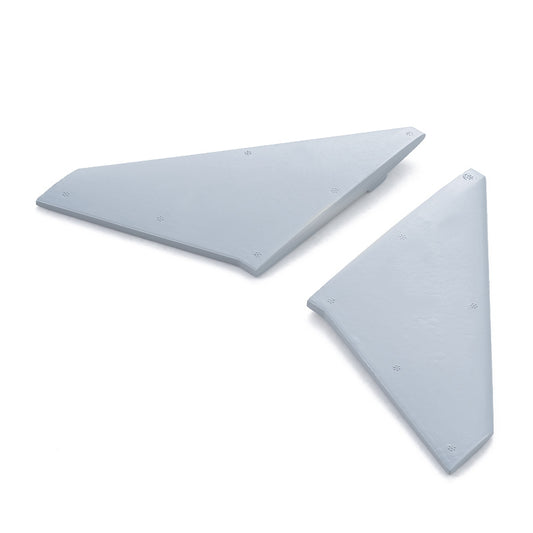

64mm J-10 Canard Gray / Blue

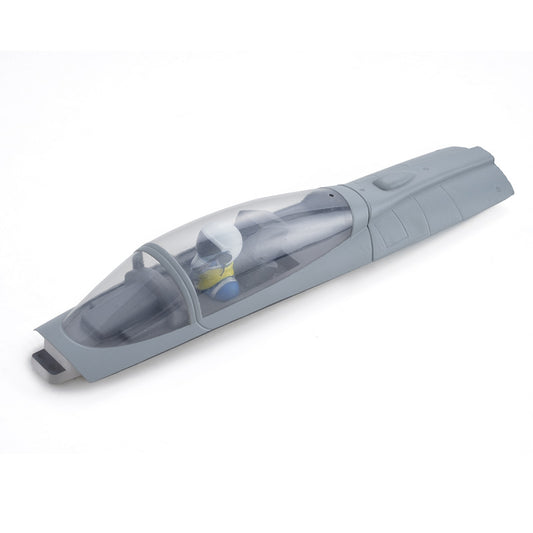

64mm J-10 Canopy Gray / Blue

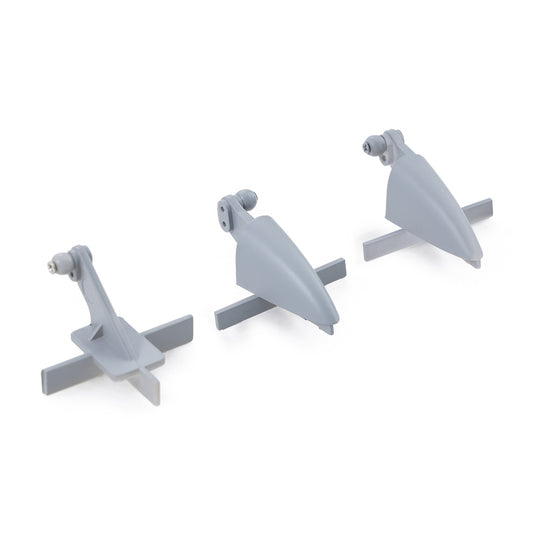

64mm J-10 Control Horn Gray / Blue
64mm J-10 Cowl Gray / Blue
Manual & Support
Description
Background
The J-10 fighter jet, nicknamed "Vigorous Dragon”, is a domestically developed high-performance, multi-role, all-weather third-generation fighter aircraft. It boasts high reliability, survivability, and maneuverability, with a large combat radius, short takeoff and landing distances, strong attack capabilities, and overall combat effectiveness reaching advanced international levels among similar fighter jets.
Introduction
The J-10 EDF Jet features a unique delta wing and canard design for exceptional high-speed handling and also agile low-speed maneuverability. Using common 4S batteries, it is powered by a 64mm ducted fan with a brushless motor and a 40A ESC which helps to replicate the sound of a fighter jet. High-fidelity details include detachable weapon sets, an air refueling probe, navigation lights, and CNC-machined landing gear. Made from EPO 40 foam, it offers impact resistance and a water-resistant paint finish. The J-10 EDF jet is easy to assemble. Experienced modelers can complete assembly in about thirty minutes. Optional paint schemes are also available.
In The Box
(1) 64mm J-10 EDF PNP
(2) 40A ESC with Reverse Thrust Function (installed)
(3) 2840 KV3150 brushless motor (installed)
(4) 64mm 11-blade ducted fan (installed)
(5) 4x 9g Digital Servo (installed)
(6) Product Manual
Needed to Complete
(1) 6 Channel Transmitter and Receiver
(2) 14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector
(3) LiPo Battery Charger
Notes to Buyers
① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.
② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.
③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.
④ The vertical tail and canard need to be secured with EPO glue.
⑤ A T6 Torx screwdriver is needed to install the front landing gear.
Specification
Model | Air Force Gray | "August 1st" Aerobatic Team |
Flying Weight | Around 1100g | Around 1000g |
Wing Load | 59.5g/dm² ( 0.12oz/in²) | 54g/dm² ( 0.11oz/in²) |
Wing Area | 18.5dm² (286.5 sq.in) | |
Wingspan | 690mm /27.2 in | |
Overall Length | 1110mm /43.7 in | |
Motor Size | 2840KV3150 | |
ESC | 40A | |
Servo | 9gX4pcs | |
Radio | 6CH Channel | |
CG (center of gravity) | 80-90mm | |
Prop Size | 64mm 12blades | |
Recommended Battery | 14.8V2200mAh-2600mAh 25c with XT60 connector | |
Aileron | Yes | |
Rudder | Yes | |
Flaps | No | |
Retracts | No | |
Approx. Flying Duration | 3 minutes | |
Minimum Age Recommendation | 14+ | |
Experience Level | Intermediate level | |
Assembly Time | 10minutes |
Features
High-Power EDF
Powered by a 64mm 11-blade ducted fan, a 2840 KV3150 brushless motor, and a high-performance 40A ESC, the 64mm J-10 requires a 4S 2200mAh-2600mAh 25C batteries for a realistic EDF fighter jet experience.
Stable Flight Technology
Reflex V3 stable flight technology aids pilots during takeoff and landing, stabilizes aircraft in normal and emergency situations, and helps reduce crash risks. Connect the Reflex V3 to your mobile phone via Bluetooth with the FMS app for customizable settings for FMS and other model aircraft.
Scale Detail Replication
Meticulously detailed with a non-functional scale detachable weapon sets (for air force gray livery only), an air refueling probe, a cockpit interior, and a pilot figure. These details provide increased realism.
Durable CNC Landing Gear
CNC-machined metal front landing gear that feature built-in shock absorption and realistic plastic parts for an authentic look and enhanced durability.
Reverse Thrust Capability
The ESC on the J-10 enables reverse taxiing and can also slow down The J-10 after landing. The ESC also includes protections against overheating, low voltage, and signal loss which enhances flight safety.
Bright Navigation Lights
Navigation lights have been added to the vertical tail, main wings, and belly air intake to enhance visibility during flight and replicate the design of real aircraft.
Iconic Paint Design
Choose from the iconic "August 1st" Aerobatic Team scheme or the classic Air Force gray scheme to suit your style.
Detachable Nose Cone Design
The J-10 adopts a detachable nose cone design that is easy to install and remove.
Videos
Parts
40A ESC- Special For 64mm F/A-18 Hornet, 64mm Rafale, 64mm J-10(With 260mm Input Cable, XT60)
64mm J-10 Airspeed Head
64mm J-10 Canard Gray / Blue
64mm J-10 Canopy Gray / Blue
64mm J-10 Control Horn Gray / Blue
64mm J-10 Cowl Gray / Blue
Manual & Support
FMS EDF Jet 64mm J-10 with Reflex V3 PNP
FMS EDF Jet 64mm J-10 with Reflex V3 PNP
SKU: FMS149PGY-REFV3
